AiM PDM32/PDM08 KIT

PDM32/PDM08

Much More than a

Power Distribution Module

PDM32 and PDM08 Power Distribution Modules are designed to distribute power to multiple circuits on your vehicle, easily replacing traditional fuse and relay systems.
PDM32/PDM08 KIT
AiM PDMs, housed in an anodized billet aluminum case, are designed to handle the rigors of motorsport and include a complete professional data logger and internal dash controller.
An AiM PDM at the center of vehicle electronics will greatly simplify your wiring harness and electronics installation while providing much more control.
PDM 32 and PDM08 offer also some interesting features, like:

ECU connection, for getting data from your ECU
Datalogging, for avoiding adding another logger to your car
GPS Module, for having automatic lap times and track positions

Dash controller, for easily managing a 6” or 10” dash
9 axis EMU platform
Mirror camera, for easily getting a back view while you drive your car in reverse in the paddock

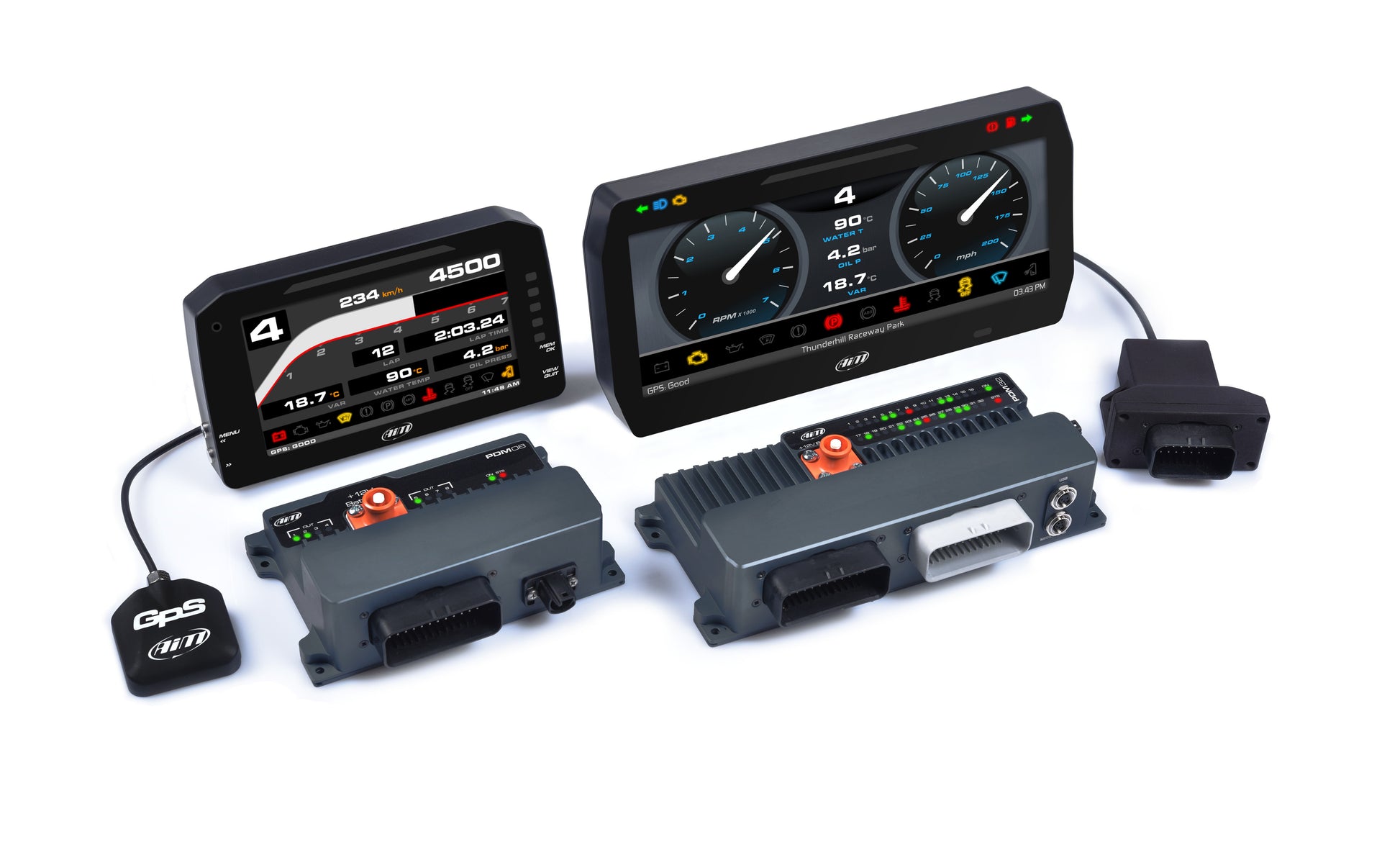

The PDM Kit includes:

• New INTEGRATED Power Distribution Module
• + 4 gigabytes Datalogger
• + Dash controller
• Dash 6” or 10”
• GPS Module for automatic Lap Time and track position

In two different configurations:

• PDM32 with 28 High Side Outputs and 4 Half Bridge Outputs
• PDM08 with 08 High Side Outputs



Each output provides status feedback for open circuit, short circuit, high temperature, over current, under voltage and over voltage. Inrush current, number of fault retries and the time between retries are all definable.
All the outputs may be configurable as PWM and allow soft start/stop.
For every output, a multicolor LED shows the status:

• Enabled/disabled
• Activated or not
• Fault

An elegant visual interface allows flexible and powerful configuration for every power output.

Special Functions
Some "black boxes" are available for simplifying the configuration.
For example, the Wiper may be managed by the LIN connection or using the Half Bridges.
In this case, you may take advantage by a virtual object like the following one:


Dash

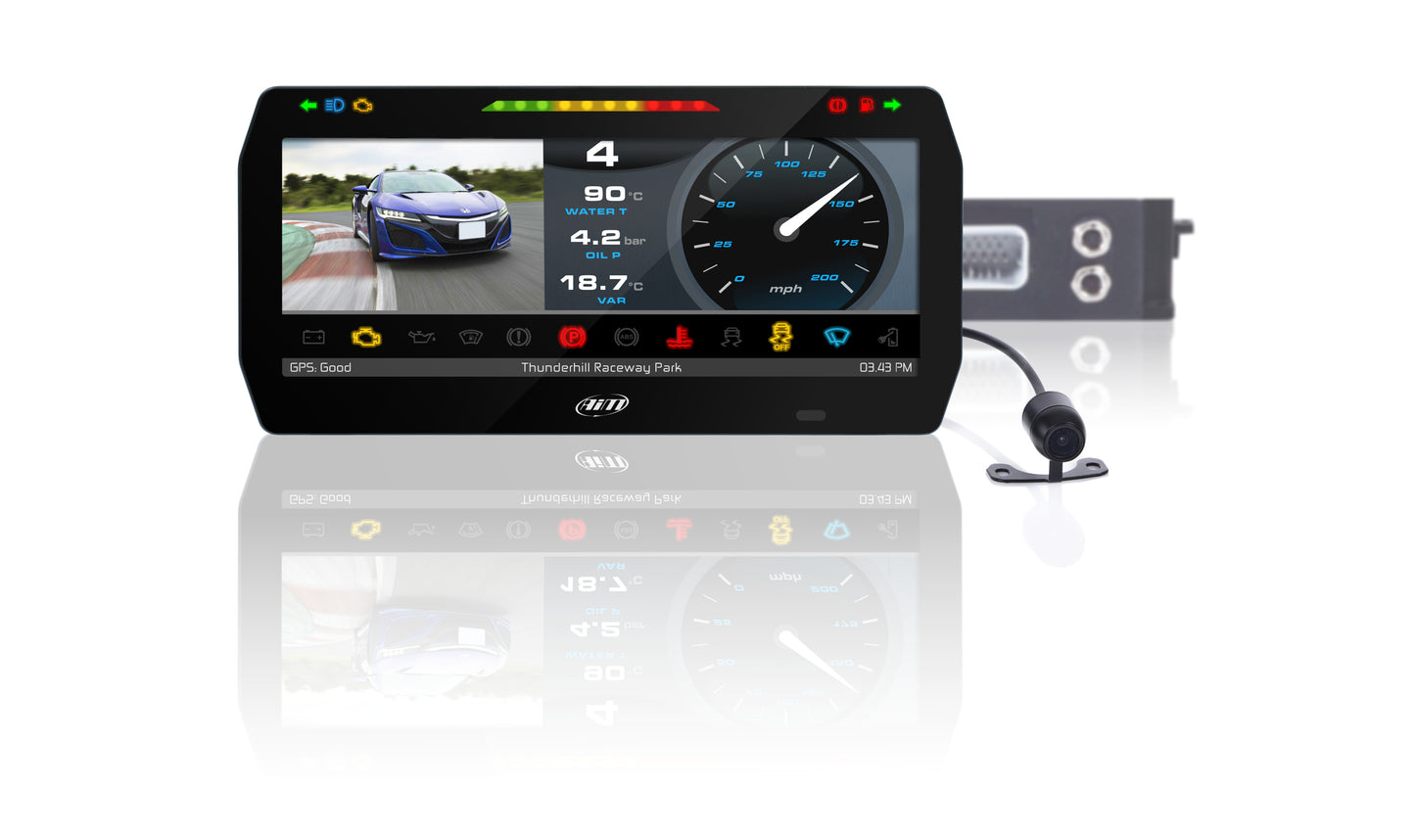

Both the PDM08 and PDM32 support the new 6” and 10” TFT displays. Both fully configurable with Race Studio 3.

Mirror Camera

PDM32 features two analog camera inputs that allow you to swap your display into a mirror camera with the press of a button or through configurable event logic-reverse gear most commonly.

GPS
PDMs come with 4,000 tracks
in their database and automatically
select the one you are driving on,
in order to calculate Lap Time
when you pass the start/finish line.

Data Logger
An internal datalogger is available, capable of recording all the analog inputs, digital inputs, ECU channels, GPS values, Currents, status of all the Power Outputs.
